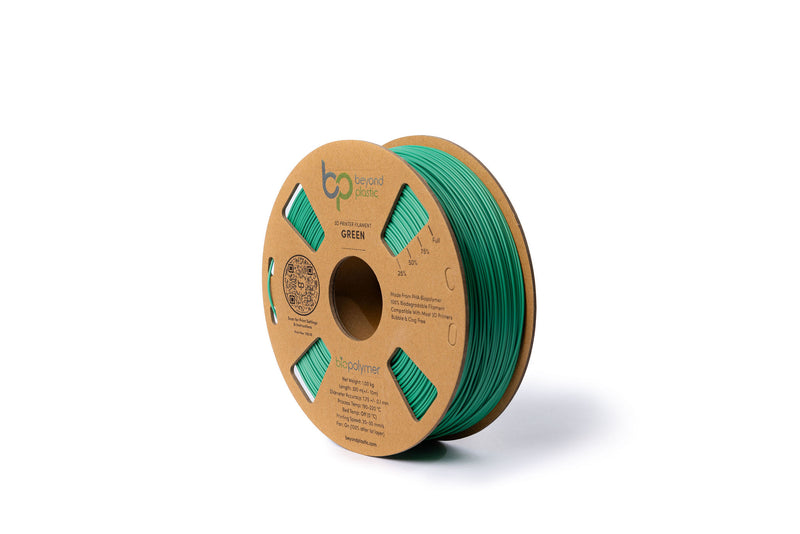

Beyond Plastic PHA 3D Printer filament, 1kg/600g Spool, Dimension Accuracy = 1.75 +/- 0.1 mm
Material Technical Data Sheet
PREMIUM FILAMENT without the hassle or the negative environmental impact. Designed by professionals for extremely high-detail resolution.
NO GREENWASHING. NO exaggerated claims. NO hidden trade-offs. NO carbon credit off-sets.
A fully commercialized 100% biodegradable PHA polymer; Beyond Plastic 3D Printer filaments return to the earth as bio-mass particulates that are consumed by naturally occurring micro-biomes in the environment. All other so-called "recyclable" and "bio-degradable" plastic/polymer materials breakdown into harmful micro-plastics that will never fully reabsorb into environmentally friendly byproducts.
EASY-TO-USE filament fluidly fits into any 3D printer model with the toughness and durability needed for accurate and precise design work. NO bubbling, NO clogging, NO warping, and odor free.
FULLY RECYCLABLE SPOOL made from recycled paperboard so that all parts of the product are truly biodegradable.
NOTE: Our material will transition from an amorphous state to becoming crystalized at room temperature. Therefore, the part will change in strength and density if printed too hot. If you want to ensure the part is fully crystalized for high dimensional accuracy, we suggest you let it rest for 24 hours or incubate on a filament dryer at 60°C for 8 hours.
Color variations in the final product may occur due to the natural color variations in our raw materials. Quality and technical specs are not affected by variations in color.
-
PRODUCT SPECIFICATIONS
• Nominal Diameter: 1.75 mm
• Diameter Tolerances: ± 0.1 mm
• Ovality: Less than 95%
• Net Weight: 600g/1kg
MATERIAL TECHNICAL DATA SHEET
Density
• Value: 1.20 g/mL
• Standard: Beyond Plastic
• Condition:
MFR
• Value: 25.2 g/10 min
• Standard: ASTM D1238
• Condition: 190 °C/2.16 kg
Max Breaking Force
• Value: 1150 N
• Standard: ASTM D638
• Condition: 1 mm/min
Elongation at Break
• Value: 15%
• Standard: ASTM D638
• Condition: 1 mm/min
Young's Modulus
• Value: 1,300 N/mm2
• Standard: ASTM D638
• Condition: 1 mm/min
Melting Temperature
• Value: 114.77-171.83 °C
• Standard: Beyond Plastic
• Condition: 10 °C/min
Glass Transition
• Value: 5.69 °C
• Standard: Beyond Plastic
• Condition: 10 °C/min
Thermal Degradation
• Value: 279.99 °C
• Standard: Beyond Plastic
• Condition: 10 °C/min
-
SPOOL DIMENSIONS
• Spool diameter: 200 mm
• Spool depth: 58 mm
• Hub diameter: 83 mm
• Hub hole diameter: 53 mm
-
RECOMMENDED PRINTER SETUP
• Extrusion temperature: 195±10
• Print Fan: On (100% after 1st layer)
• Bed Addition: PVOH Glue
• Bed temperature: 0°C
• Brim Width: 10-15mm
• Brim Separation Gap: 0mm
• Printing speed: 20~30 mm/s
• Dryer: Material is hydroscopic but at low percentage (0.03%). Will dry very quickly if necessary.
